4. Working with the Layout List

The Layout list displays all available Layouts. Each Layout is represented by name and, if available, a description.

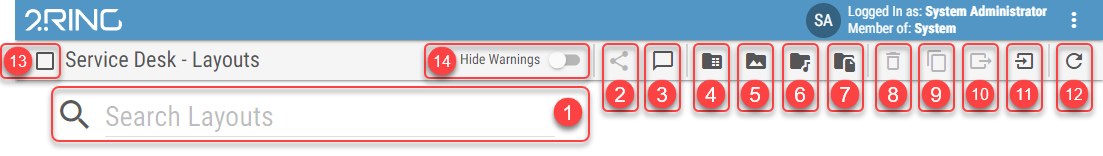

Figure 1: Layout list Controls:

../_images/working-with-layout-list-controls.png

  1. Search box
    Displayed Layouts can be filtered using the search box. When no search phrase is entered, all available Layouts are displayed. Otherwise, only Layouts containing the entered phrase are displayed. The letter case is neglected. Pressing any key on the keyboard automatically starts typing into the search box.

  2. Share
    Available only when a single Layout is selected. Opens up a dialog with sharable links to the selected Layout.

  3. Update banners
    Available for Business Unit administrators, system administrators, and Message Authors only. Opens up a dialog where multiple banners text can be updated. For more info see Update Banners chapter.

  4. Manage CSV Files
    By clicking on the Manage CSV Files button, CSV files can be uploaded or deleted and then selected as a source table in table-valued calculations to provide static data. For more info see Upload CSV Files chapter.

  5. Manage Image Files
    By clicking on the Manage Image Files button, image files can be uploaded or deleted. For more info see Content Management chapter.

  6. Manage Audio Files
    By clicking on the Manage Audio Files button, audio files can be uploaded or deleted. For more info see Content Management chapter.

  7. Manage PDF Files
    By clicking on the Manage PDF Files button, PDF files can be uploaded or deleted. For more info see Content Management chapter.

  8. Delete
    Available when at least one Layout is selected. Permanently deletes all selected Layouts.

  9. Copy
    Available when at least one Layout is selected. Opens up a dialog where selected Layouts can be copied. For more info see Copying Layouts chapter.

  10. Export
    By clicking on the Export button, selected layout/widget is exported and downloaded as a json file. For more info see Export/Import chapter.

  11. Import
    Exported layout/widget can be imported by clicking on the Import button. For more info see Export/Import chapter.

  12. Refresh
    Refreshes the content of the Layout list.

  13. Select/Deselect All
    Add all Layouts to selection or removes all Layouts from selection if all are already selected.

  14. Hide Warnings
    Whether Layouts with warnings should be highlighted in a different color.

When hovering over the layout’s name, a preview of the layout is displayed.

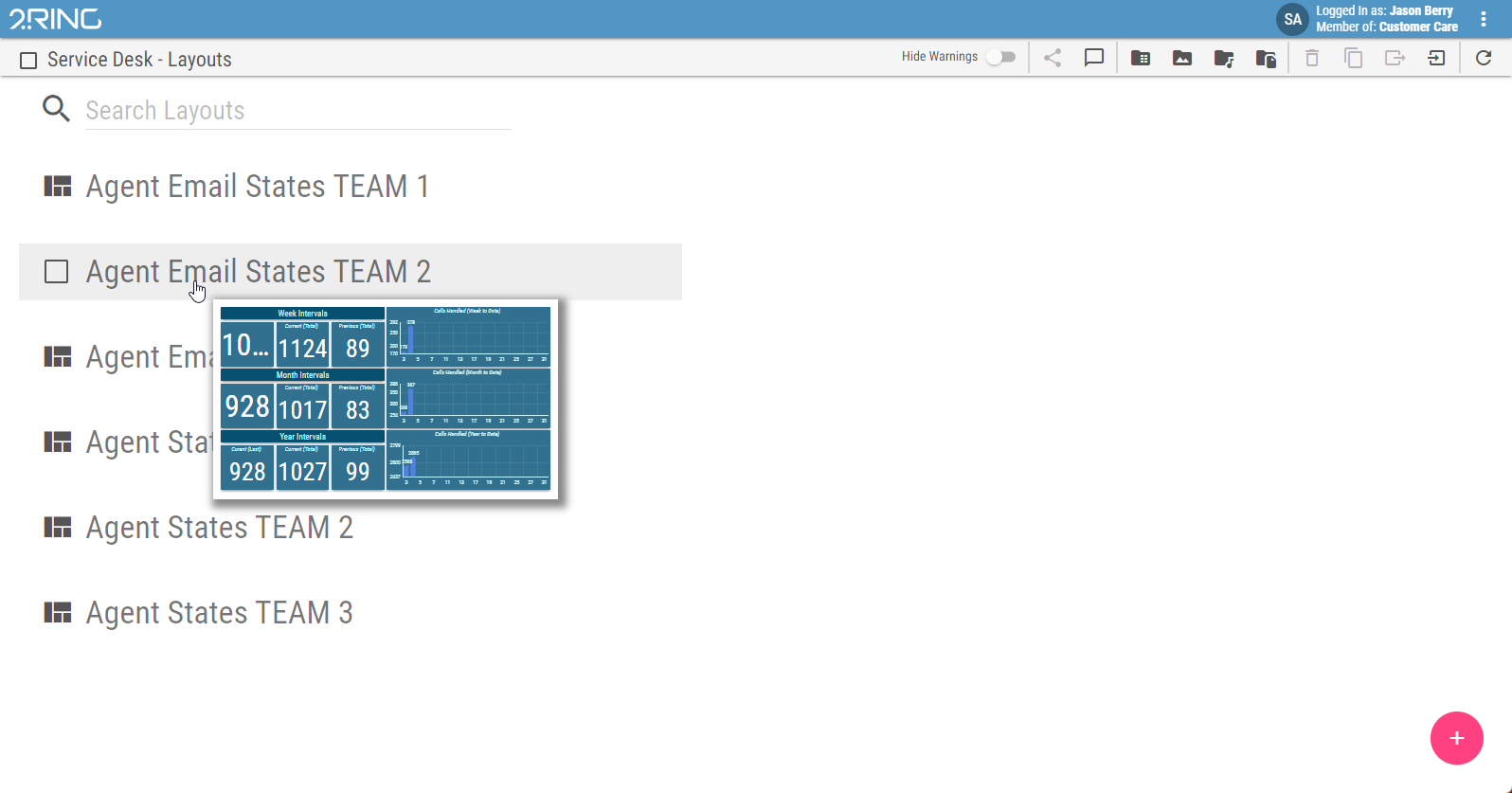

Figure 2: Layout preview

../_images/working-with-layout-list-layout-list-0.png

If there is a draft version of the layout, the layout is marked with *. For more information about the draft, see Draft chapter.

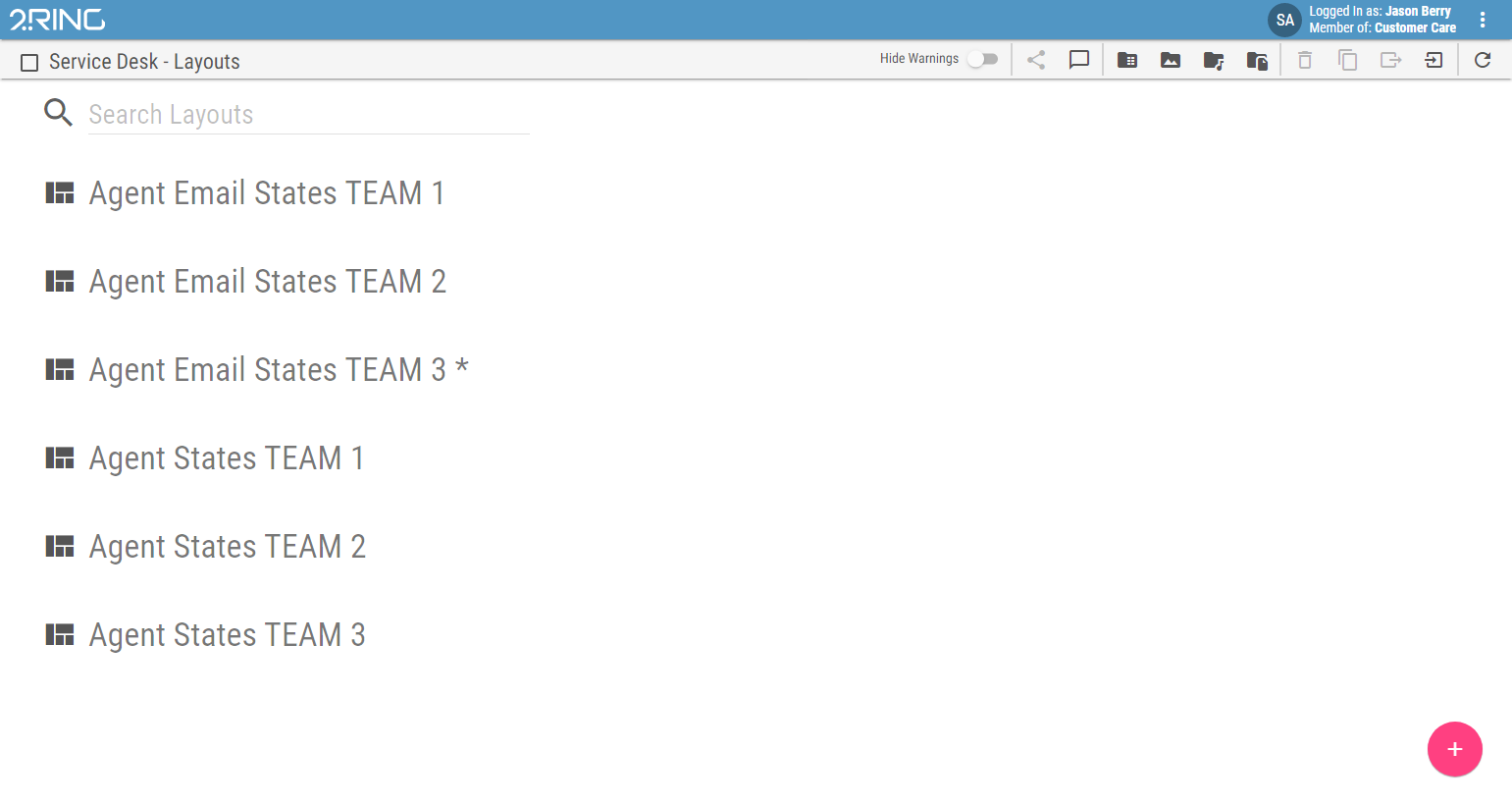

Figure 3: Layout list

../_images/working-with-layout-list-layout-list.png

If there are some Layouts, containing not properly configured segments, administrators can see them marked orange in the Layout list.

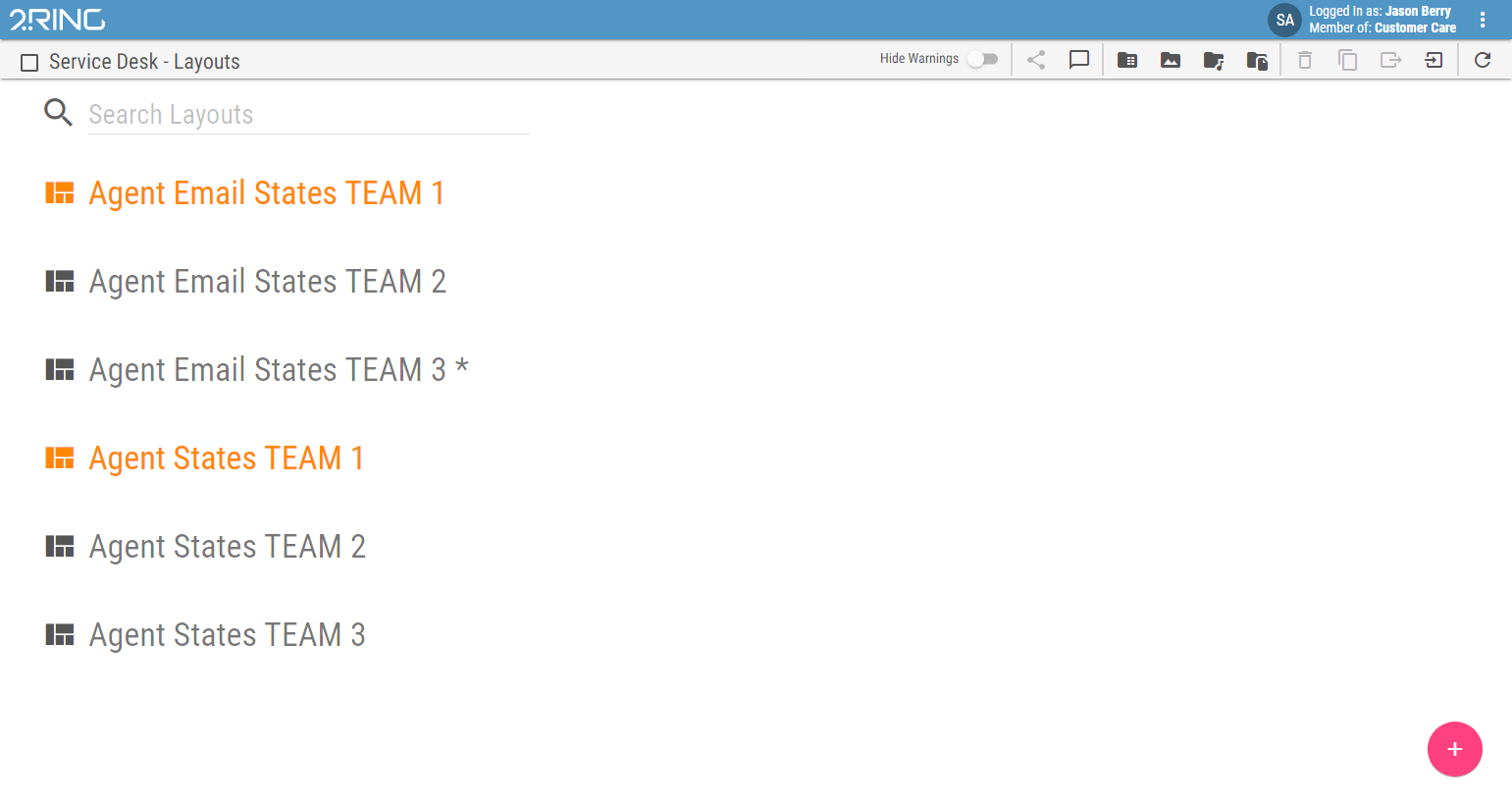

Figure 4: Layout list containing invalid Layouts

../_images/working-with-layout-list-layout-list-invalid.png

If the user has privileges, then a new Layout can be added by clicking the |plus| button, located on the bottom right side of the screen. Clicking the button will redirect the user to the newly created Layout and open up its edit mode.

When hovering over a Layout with the mouse cursor, its icon changes to a checkbox. Toggling this checkbox adds or removes the hovered Layout from the selection. Multiple Layouts can be selected at once. Additional controls are available when one or more Layouts are selected.
