Data SourcesΒΆ

  • Widget Data Source
    Read-only
    Data source in the widget that will be mapped to the layout data source.

  • Layout Data Source

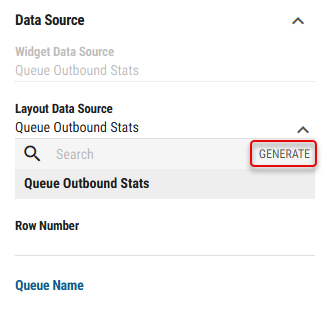

    A layout data source that will be mapped to selected widget data source. Layout data source can be generated from the widget definition by clicking on button.

    ../../../../_images/generate-button.png

    Only layout data sources with the same source tables as the widget data source can be selected.

  • Row Number
    Determines the exact row from the calculation that should be passed to widget, based on the order of rows which depends on configured sorting in the data source.

    Row Number and Data Filters can be combined.

  • Data Filters
    This section contains all data filters allowed by widget calculation with the option to specify a value for each one.
