Nested Widget

Related Videos

A widget can be displayed inside of a segment, using the Nested Widget segment type. Nested Widget is fully interactable.

For general information about this segment, see Nested Widget chapter.

The nested Widget can be selected in the Widget dropdown. Only Widgets from the same Business Unit or Shared Business Unit can be selected.

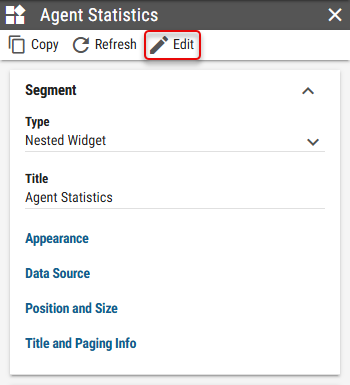

The Nested Widget cannot be edited directly in its parent Layout, like other segments. Instead, an Edit button opens up a new tab and navigates to the Nested Widget’s panel in edit mode.

Layouts containing a nested widget that references an unpublished widget cannot be published.

Figure 3: Edit button

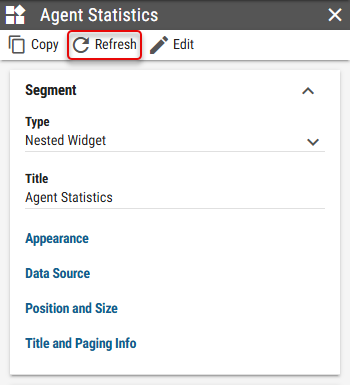

If any changes are made to the widget while the parent layout is open, the widget needs to be refreshed by clicking on the Refresh button in order to see the changes in the nested widget.

Figure 4: Refresh button

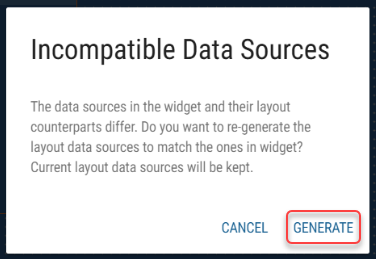

When a nested widget uses a data source that has been modified in the widget, the data sources in both widget and the layout where the widget is nested can become incompatible. To re-generate incompatible data source, click the Refresh button and confirm by clicking the Generate button.

Figure 5: Generate button

• Widget
  A widget, that should be nested.

• Appearance
  The style of the Nested Widget.

  • Show Background
    Whether background from the nested Widget should be applied.

    • Background Type
      Inheritable
      Type of the Widget’s background.

      • Image - Image is applied as a background.

      • Solid Color - Solid color is applied as a background.

      • Inherited - Background from the nested Widget is applied.

    • Background Color
      Inheritable
      Available only when Solid Color is selected as Background Type
      For more information see Color Field section.
      Color of the Widget’s background.

    • Background Image
      Inheritable
      Available only when Image is selected as Background Type
      Image of the Widget’s background.

  • Scaling Mode
    Whether the relative sizes in widget segments should be applied relative to parent layout or to widget itself.

    • Self - Relative sizes in widget segments are applied relative to the widget itself.

    • Parent - Relative sizes in widget segments are applied relative to parent layout.

  • Apply Theme
    Whether parent layout theme, theme set on the widget itself or custom theme should be applied to segments in widget.

    • From Parent Layout - Theme from the parent layout is applied.

    • From Nested Widget - Theme from the nested widget is applied.

    • Custom - Custom theme is applied.

  • Custom Theme
    Available only when “Custom” is selected as Apply Theme
    Visual theme, applied to all segments in the Nested Widget.

• Data Sources
  Mapping of widget calculations to parent layout calculations. For more information see Data Sources chapter.

• Data Sources
